On-line Analysers
Speed and stability gives real-time data for critical on-line moisture analysis.
The Manalytical MicroView On-Line Hygrometer / moisture analyzer can sample inert and non-reactive gases. It is ideal for applications where fast speed of response and reliable data collection are important, and the ability to provide audit records is of benefit.
- Temperature Controlled Silicon Sensor transfers laboratory accuracy in to the field, offering a Transfer Standard instrument with unrivalled speed of response.
- Automatic Push Purge® Sensor drydown for rapid response and elimination of hysteresis.
- Graphical display for detailed sample information and audit capability.
- Internal datalog feature stores measurements in the instrument memory for review at a later time.
- ATEX certified model available
Product Specification
| Sensor Type | Silicon Sensor, Temperature Controlled to 46°C |
| Operating Ranges | 0.1 to 100 ppm[V], 1 to 1000 ppm[V], 1 to 6000 ppm[V]. Ranges in Dewpoint °C / °F and lb/mmscf available upon request. |
| Speed of Response | Full scale ‘wet’ to ‘dry’ in <1 minute using Push Purge®. |
| Diagnostics | Push Purge® feature aids sensor drydown, confirms that the senor and electronics are operational and highlights the presence of contamination. Push Purge® confirms if the speed of response of the analyser is maintained, validates readings on-line and removes hysteresis before each measurement. |

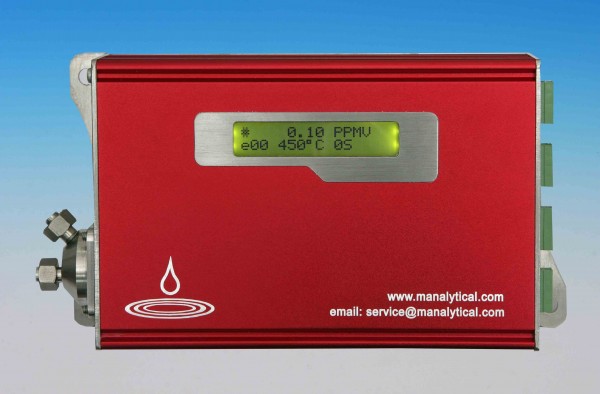

The brand new Manalytical MicroView Mini Hygrometer / moisture analyzer
combines our key performance advantages in an unbeatable entry-level transmitter.
The MicroView Mini is ideal as a stand-alone transmitter, or as the keystone of a more complex system solution.
- Temperature Controlled Silicon Sensor transfers laboratory accuracy in to the field, offering a Transfer Standard instrument with unrivalled speed of response.
- Automatic and manual Push Purge® Sensor drydown for rapid response and elimination of hysteresis.
- Multiple inputs, outputs and alarms allow the MicroView Mini to be used in system configurations.
Product Specification
| Sensor Type | Silicon Sensor, Temperature Controlled to 46°C |
| Operating Ranges | 0.1 to 100 ppm[V], 1 to 1000 ppm[V]. Other ranges and scales available upon request. |
| Speed of Response | Full scale ‘wet’ to ‘dry’ in <1 minute using Push Purge®. |
| Diagnostics | Automatic and manual Push Purge® feature. Push Purge® aids sensor drydown, confirms that the senor and electronics are operational and highlights the presence of contamination. Push Purge® confirms if the speed of response of the analyser is maintained, validates readings on-line and removes hysteresis before each measurement. |
| Inputs / Outputs | 4 inputs / outputs (including 4-20mA and RS485) for maximum flexibility |
| Alarms | 4 user definable alarms |
